Weatherproof FTTH Optical Distribution Box 8 Cores Fiber Optic Terminal Box
ODF outdoor 8FO Weatherproof Outdoor FTTH Distribution 8 cores Fiber Optic Terminal Box

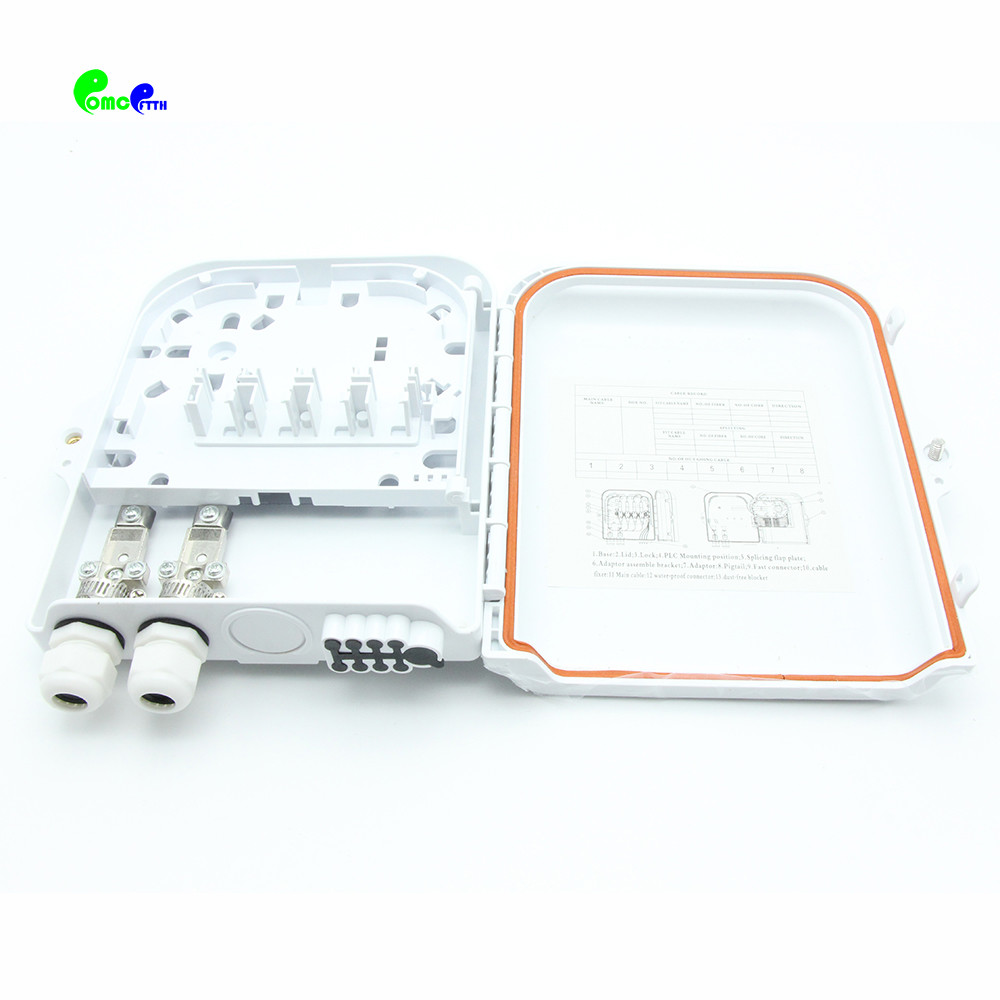

This Lockable IP65 distribution box is supplied loaded or unloaded and offers the ability to terminate 8 fibers housed in a strong robust ABS enclosure for indoor and outdoor applications. This terminal box terminates up to 8 fiber optic cables, offers spaces for splitters and up to 8-16 fusions, allocates 8 x SC Simplex adapters or LC Duplex adapters and working under both indoor and outdoor environments. It allows also fiber splitting, splicing and distribution. Provides solid protection and management for the FTTH network building
Application
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
Features
IP 65 Rating for external use
Lockable door for added security
Integrated cable tie points for securing incoming cable
Up to 16splices &8xSC Simplex connection points or 1x4/1x8 PLC splitter
Removable splice tray for easy installation
Accepts loose tube, distribution and pre-terminated cables
Integrated bend radius protection
Removable door for ease of installation
Supplied with 8 heat shrink splice protectors
Supplied with transit tubing
Supplied with wall fixings and tie wraps
ROHS, REACH compliant
.
Specification
| Model | FDB-108A-6 |
| Adapter | 8pcs of SC Simplex / LC Duplex |
| Cable Ports | 2/3 |
| Applicable cable OD | 5-12mm |

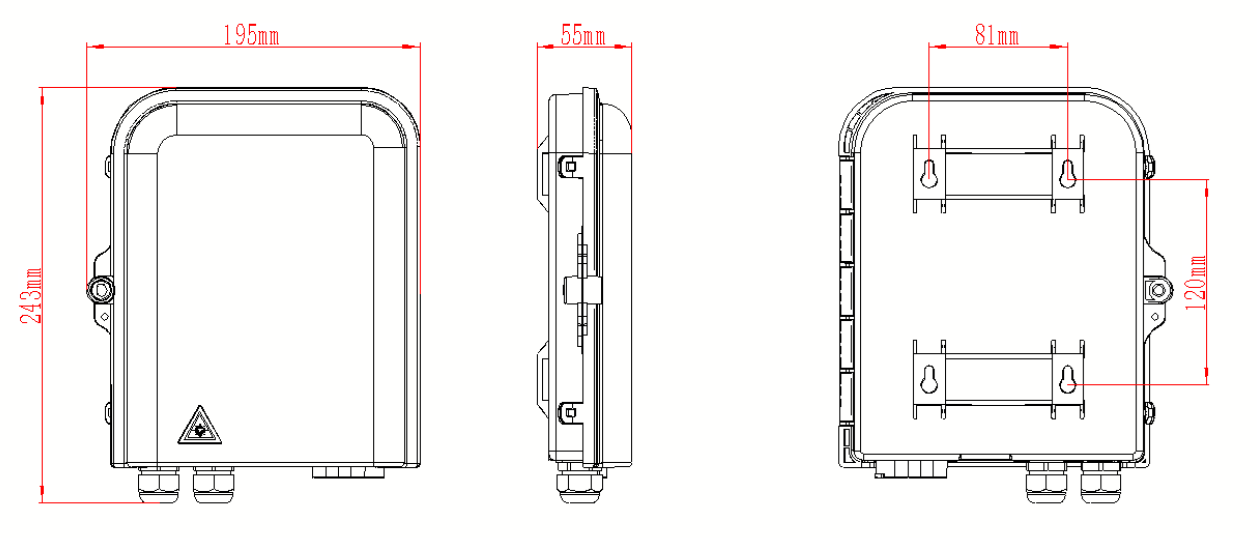

| Box Dimensions(mm) | 243mm*195mm*55mm |
| Material | ABS/ABS+PC |
| Max capacity(F) | 24F Splices&Connection |
| Installation method | Rack mount and pole mount |
Operation conditions
Temperatures: -40℃ -- 60℃
Humidity: 93% at 40℃
Air Pressure: 62kPa – 101kPa
Standard Accessories
Labeling paper, abrasive paper, self-adhesive positioning block, heat-shrink protective sleeves, nylon tie,insulation tape, fixing screws.
